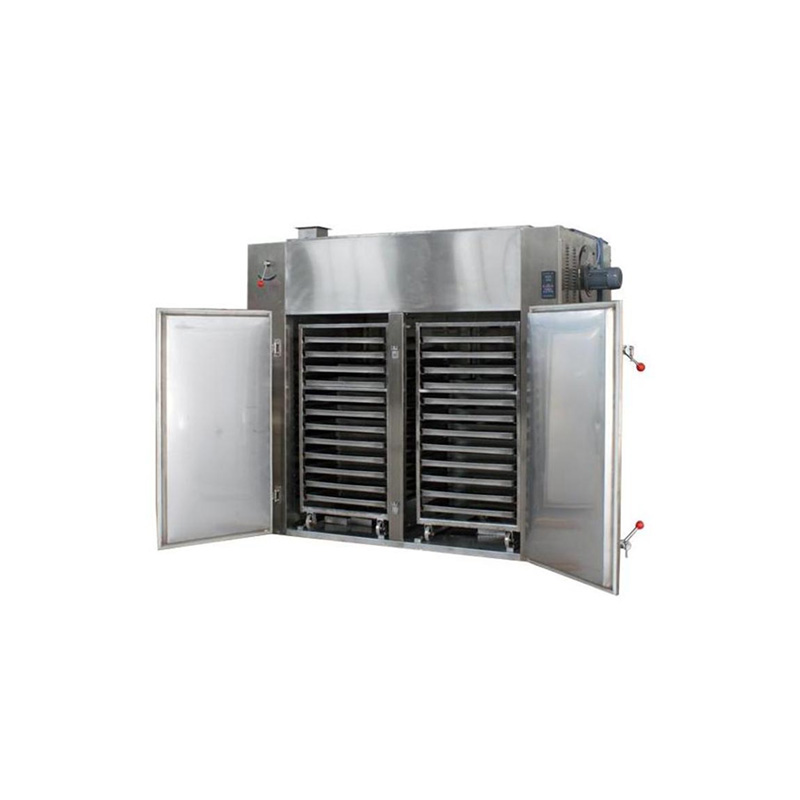

  Tray dryer

  The tray dryer is general-purpose drying equipment with a wide adaptable area, and the tray dryer is widely used in the pharmaceutical, chemical, food, light industry, heavy industry and other industries for heating and curing, drying and dehydration of materials and products.


Application

The tray dryer is general-purpose drying equipment with a wide adaptable area, and the tray dryer is widely used in the pharmaceutical, chemical, food, light industry, heavy industry and other industries for heating and curing, drying and dehydration of materials and products.

Working Principle

The hot air dryer oven is equipped with low noise axial flow fan and automatic temperature control system. The whole circulation system is completely closed, with high thermal efficiency, energy saving and even drying of materials under the effect of forced ventilation. The heating mode can be steam or electric heating. The whole machine has low noise, stable operation, convenient installation and maintenance of automatic temperature control, wide range of application, and can dry various materials.

Application Range

This hot air dryer oven machine is mainly used for drying, dehydration, baking, tempering, preheating, shaping, curing and so on.

Food: vegetables, fruits, flower tea, meat, seafood, aquatic products, spices, grains, nuts, milk powder, pasta, starch, feed, oats, silkworm chrysalis, sugar block vitamins, protein, agricultural and sideline products deep processing, etc

Pharmacy: API, Chinese herbal pieces, herbal medicine, extract, powder, granule, granule, yeast, animal glue, microorganism, lipase, protease, biological products, drug packaging bottle, etc

Chemical: pigment, dye, resin, fertilizer, curing agent, catalyst, silica, calcium carbonate, ceramic raw materials, battery raw materials, plastic products, propylene fiber, activated carbon, synthetic rubber, other chemical raw materials, etc

Industry: wood drying, motor baking, electronic component baking, electroplating product baking, glassware baking, multi silicon material baking, hardware parts preheating and tempering, paint barrel preheating, rubber secondary vulcanization setting, paint film curing, etc.

Main technical parameters

1.    The hot source can be steam, electricity, far infrared, or steam + electricity.

2.    Temperature of steam heating: 50~140℃.

3.    50~350℃ for electricity or far infrared.

4.    There are automatic and computer control systems for customer selection.

5.    The normal pressure of steam will be 0.02~0.8Mpa.

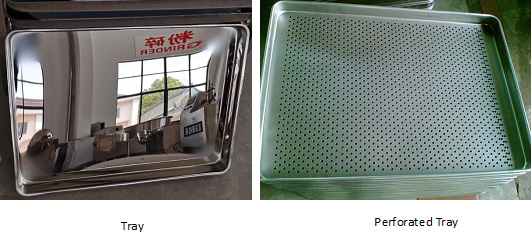

6.    The size of drying tray: 460X640X45mm
