  Liquid Filling Line

  Liquid Filling Line

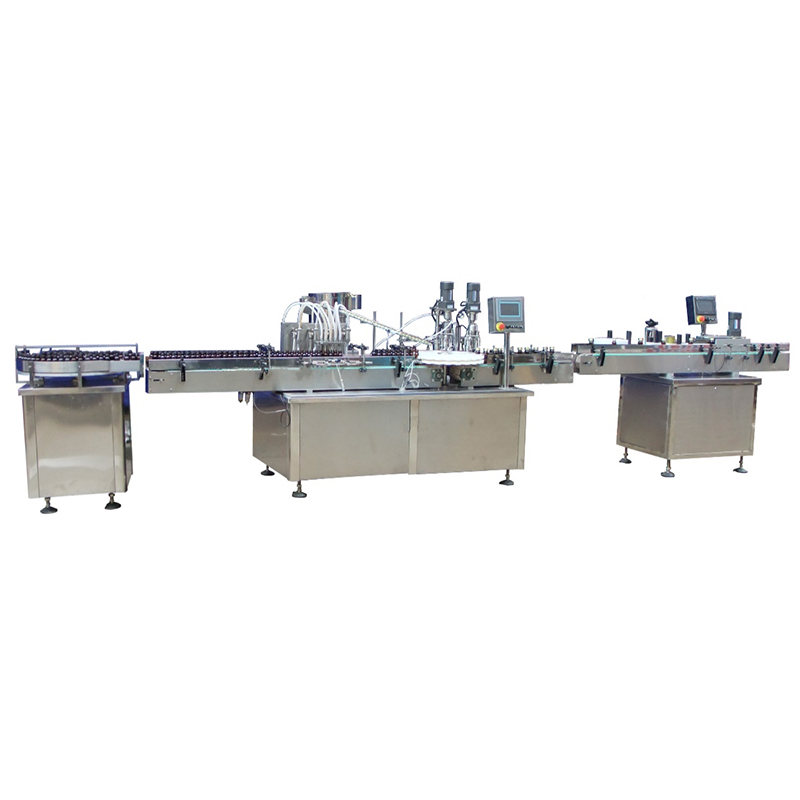

  The liquid filling production line is suitable for oral liquid filling production, consisting of bottle unscrambler machine, linear filling and rolling (screwing) capping machine, labeling machine, etc. It can complete the processes of bottle supplying, filling, capping, capping, labeling, etc. fully automatically. It is used for the filling and linkage production line of various liquid materials in pharmacy, foodstuff and chemical industry. The production line meets GMP requirements.

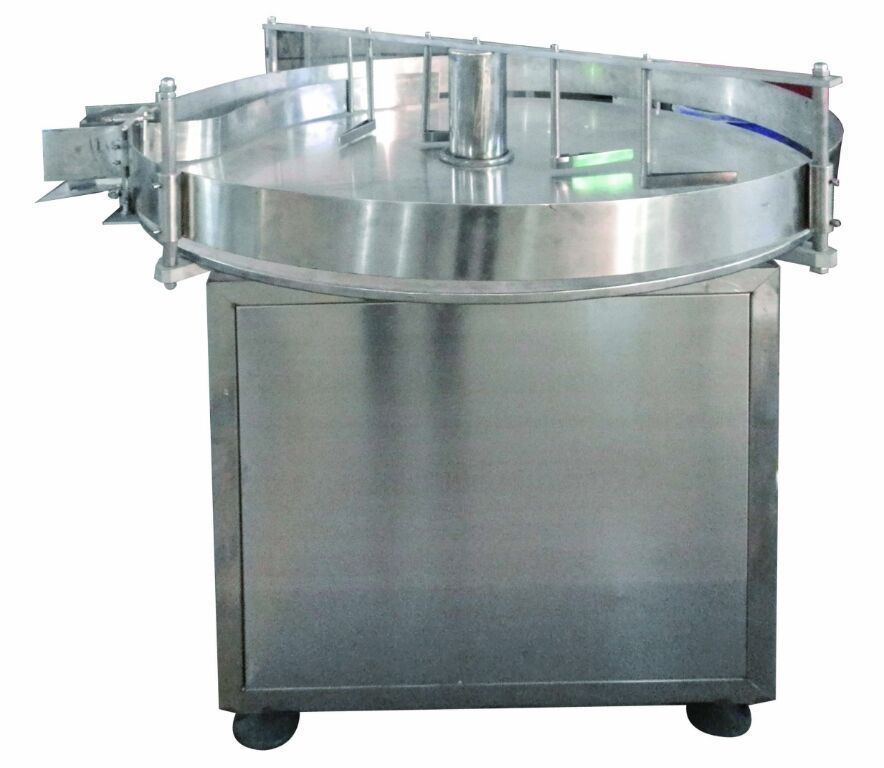

BOTTLE UNSCRAMBLER

The bottle is placed on the turntable manually, and the rotation of the turntable and the guidance of the track will send the bottle to the conveying line of the equipment in the next process to complete the function of bottle supply. This is an indispensable auxiliary machine for equipment connection in the pharmaceutical industry.

Technical parameter

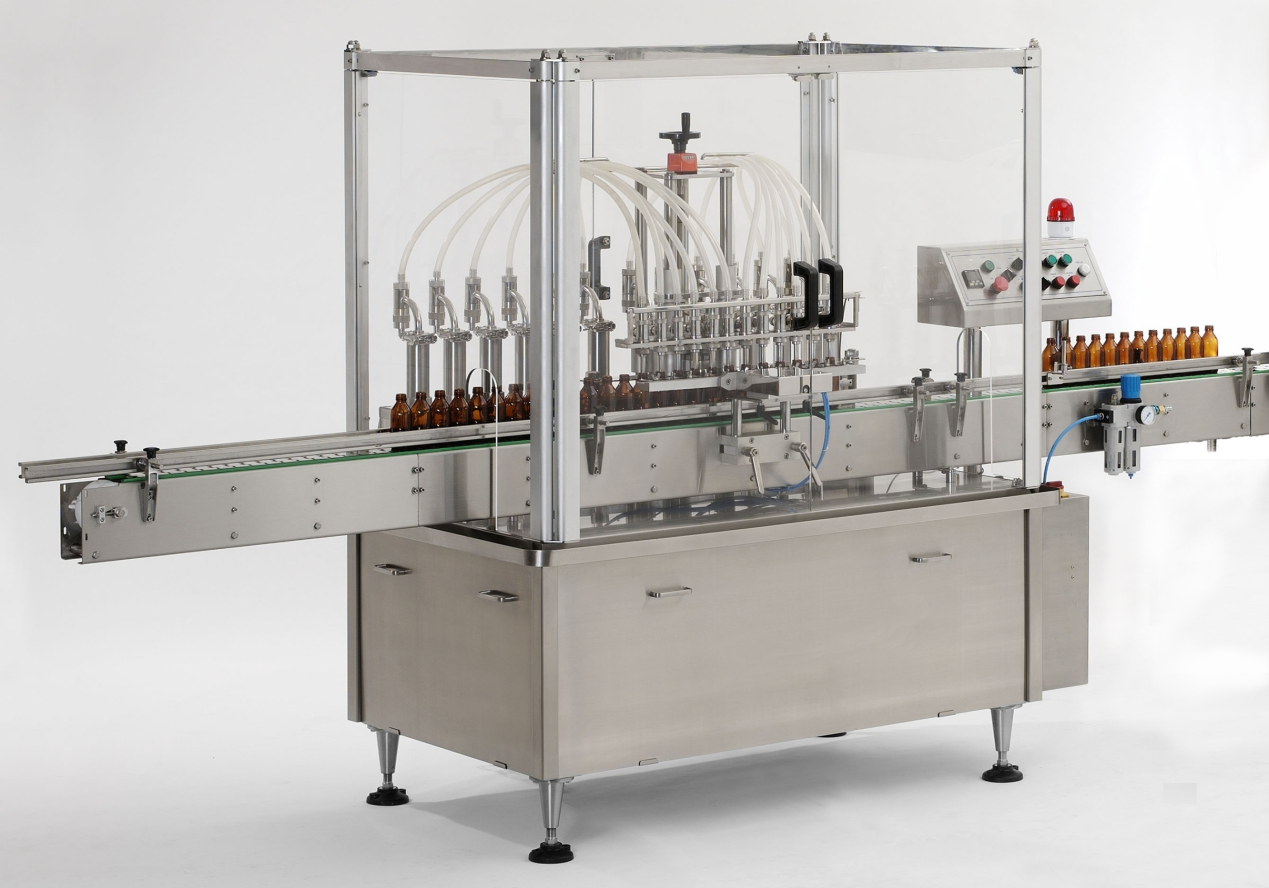

LINEAR LIQUID FILLING MACHINE

This machine is the filling in the liquid production line, mainly used for the filling of glass bottles or plastic bottles, with no bottle and no filling function. The machine has advanced design and compact structure. Fully comply with GMP standards.

Features

1. All electrical components adopt well-known brands.

2. The operation of this machine is intuitive and convenient, no bottle without filling, accurate measurement.

3. Made in full accordance with GMP standards.

4. The bottle is automatically fed by the conveyor belt. After reaching the filling station, the PLC controls the bottle to automatically stop, automatic filling, and the bottle is automatically discharged after the filling is completed.

5. Servo-driven filling, the adjustment of different loading quantities can be completed directly on the touch screen device parameters, convenient and fast.

Technical parameter

Note: The quantity of filling heads can be designed according to customer's production requirements

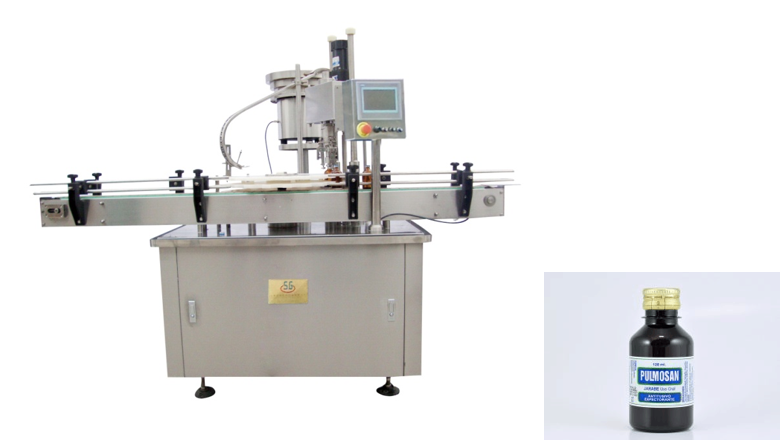

AUTOMATIC CAPPING MACHINE

This machine is mainly suitable for capping of aluminum bottles with different specifications. The capping part adopts four-knife magnetic moment capping sealing, the sealing thread is beautiful, and the sealing is firm. (After replacing the screw cap, it can also be used for screw caps, anti-theft caps, childproof caps, pressure caps, etc.)

After the bottles enter the turn plate positioning hole through the conveyor belt, the main motor drives the carousel to rotate, and the bottles to be capped are sent to the capping station, and the caps are automatically discharged through the photoelectric sensor. After the caps are discharged, the capped bottles continue to rotate to send the capped bottles to capping station, the main machine drives the cam, and the rolling cap head automatically rolls  the cap. After the capping is completed, and the bottle is brought to the outlet station by the turn plate, and the capped bottle is sent by the conveyor belt. To the next step.

Technical parameter

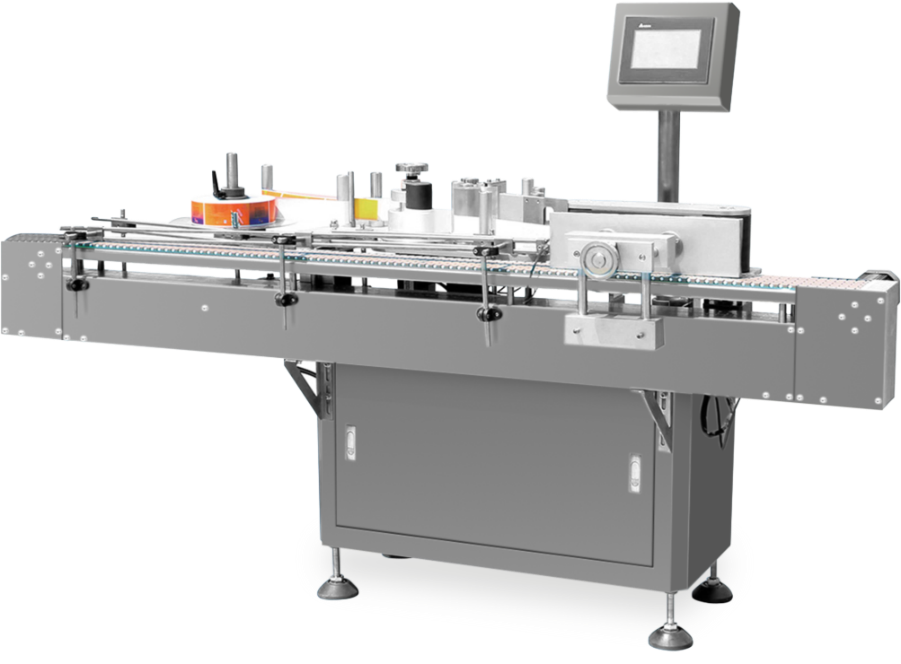

ROUND BOTTLE LABELING MACHINE

Equipment composition

Electrical cabinet, conveying mechanism, separate bottle device、roll label device、brush label device、labeling engine、operation system and control system;  Ribbon printer can be optional

Working process

Bottles move to separate bottle device for separation, keep bottles in a certain distance and move in a center line;

When sensor check bottle, it sends signal to PLC, PLC received the signal deal with information first, then output signal to motor driver, driven by the drive motor for send label.

The brush label device past label on bottle one side first, then bottle rolling around in the roll label device, brush label on bottle body for around, labeling finish.

Technical Parameter
