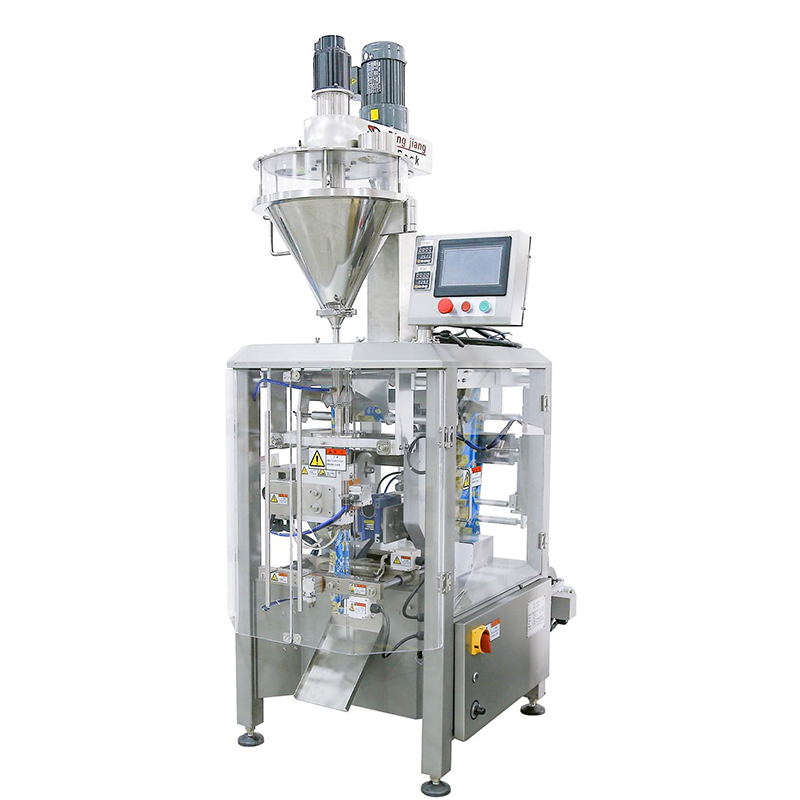

  Pouch Packaging Machine

  Pouch Packaging Machine

  Machine feature


  1. 25L side-open hopper, easy to clean.

  2. Packaging powdery in 50-100g pouch.

  3. Servo motor drive the auger, got high accuracy.

  4. Have one stir on the hopper, assure the powder fill in the auger.

  5. Chinese/English or customize your language in the touch screen.

  6. Reasonable mechanical structure, easy to change size parts and clean up.

  7. Through changing accessories, the machine is suitable for various powder products.

  8. We use famous brand electric components, more steady.

  9. One vacuum cleaner (option) can be matched to collect dust and easy to clean the machine.

  10.Machine has filling, weighing, make bag, seal, cut, coding function.




Technical specifications

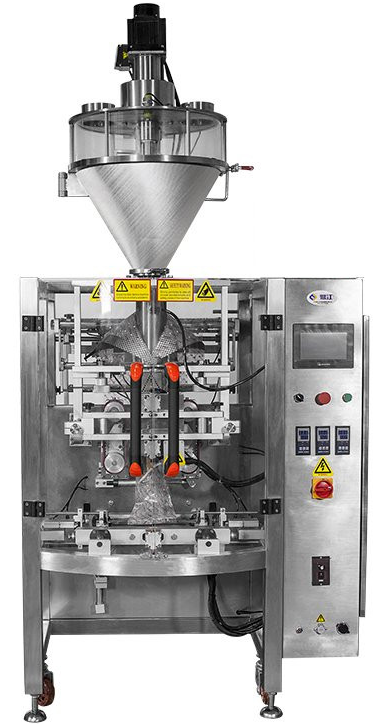

AUTOMATIC POWDER BAG PACKAGING MACHINE

The automatic powder packaging machine can finish bag making, measuring, filling, code, cut bag, etc. Suitable for packing powdery product such as milk powder, monosodium glutamate, solid drink, white sugar powder, glucose, coffee powder, feed powder, pharmaceutical, pesticide, solid powder, granular additive, dyestuff, etc.

Product feature

1. Chinese and English touch film screen display, operation is intuitive and simple.

2. PLC computer control system, more stable operation, without stopping to adjust any parameters.

3. Can store ten groups of parameters, more accurate replacement of varieties.

4. Adopting servo motor to pull the touch, more accurate positioning.

5. Horizontal and vertical sealing temperature independent control, can be well suited to a variety of composite film, PE film and other packaging materials.

6. Diversified styles of packaging, back sealing, corner insertion, continuous bag, punching hole and so on.

7. Production of bag making, sealing, packaging, printing the date.

8. Working environment is clean and low noise.

9. Failure alarm function.

Technical specifications

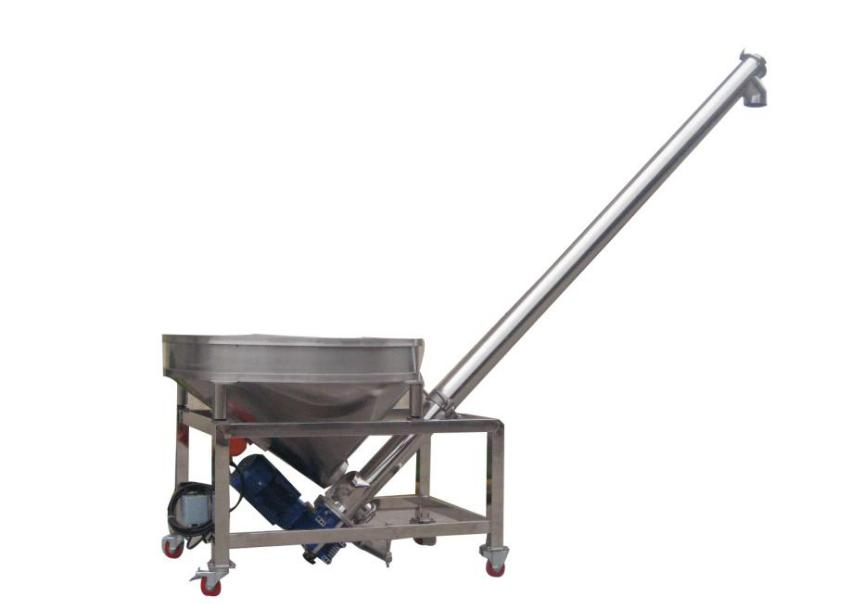

SCREW AUGER FEEDER

Applicable

This feeder is suitable for multiple powdery product. Working together with packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet. And the machine can be used independently. All parts are made of stainless steel except the electric motor, bearing and support frame.

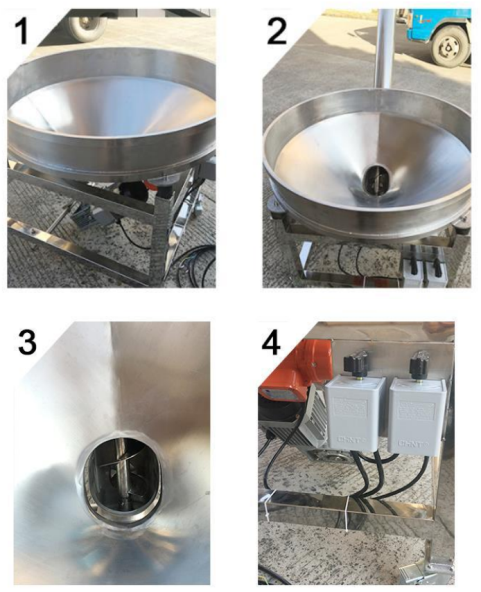

Product feature

1. Using double electric motors: feeding motor & vibrating motor, separately controlled.

2. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products.

3. Product funnel can separate from the tube for easy assembly.

4. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassembled for washing.

Technical specifications
