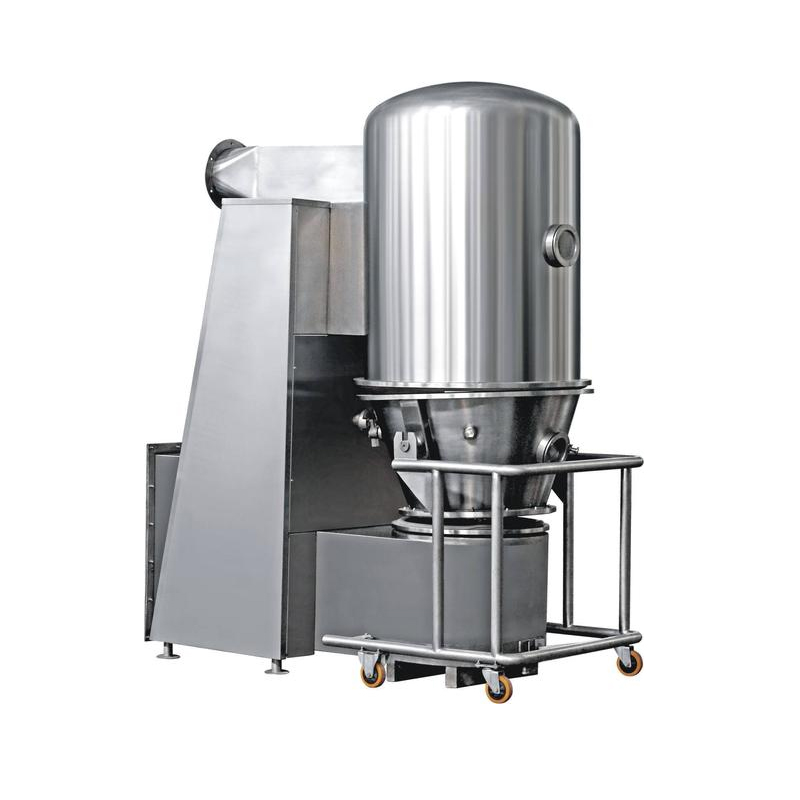

  Fluid Bed Dryer

  Fluid Bed Dryer

  Applications:

  The fluid bed dryer designed for food powder or granule drying, chemical powder drying, medicine powder drying.

  Used for boiling drying of particle material with a size of 0.1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades as pharmaceutical, food, light industry and chemical etc.




Features:

The structure of fluidization bed is of round so as to avoid dead corner.

Inside the hopper there is a stir in order to avoid agglomeration of raw material and forming canal of flow;

The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too.

It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirement of GMP

The drying speed is fast and the temperature is uniform. In general the drying time is 20-30 minutes.

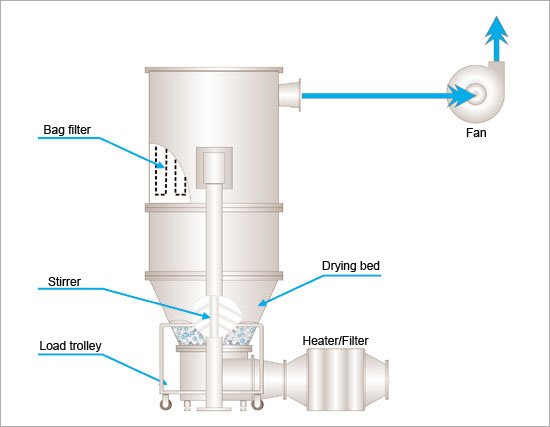

Principle:

When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

Main Technical Specifications
