Tablet Deduster
Tablet Deduster
The SP-310 deduster is an auxiliary mechanism of tablet press to remove some powder stuck on surface of tablets in pressing process.
it is also equipment for conveying tablets, lump d rugs, or granules with dustless, and can be suitable for joining with an absorber or a blower as a vacuum cleaner, with its high efficiency, better dust-free effect, lower noise, and easy maintenance.
The SP-310 deduster is widely used in pharmaceutical, chemical, food industry, etc.
Product Details

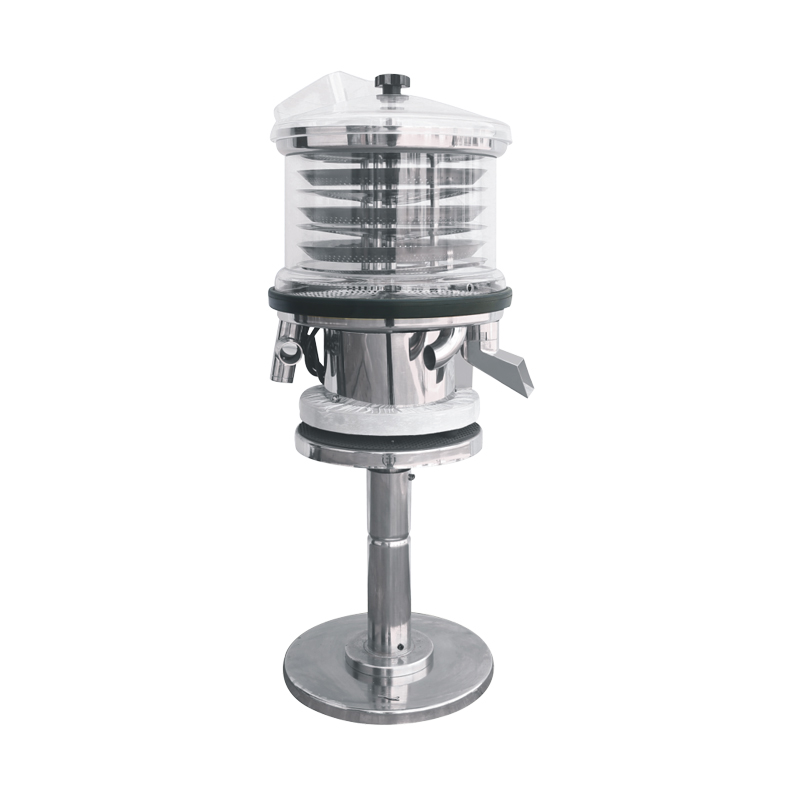

SP-310 TABLET DEDUSTER
Main characteristic
Design of GMP
Double layers screen structure, separating tablet & powder
V-shape design for the powder-screening disk, polished efficiently
Speed and amplitude adjustable
Easily operating and maintaining
Operating reliably and low noise
Main technical data:
output | 550000 table/h |
Max. noise | <82 db |
Dust scope | 3m |
Compressed air pressure | 0.2MPa |
Powder supply | 220v/50hz/50w |
Overall size | 410*410*880mm |
Net weight | 34kg |

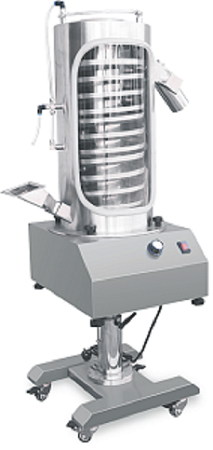

JF200C TOPSPIN TYPE TABLET DEDUSTER
Purpose
The JF200C tablet deduster has three functions such as tablet dust removing, lifting and sieving. The machine inlet can be connected with any model of tablet press and the outlet can be connected with metal detectors. After connected with the vacuum cleaner, the tablet sieving machine can realize the linked production mode including tablet dust removing, tablet sieving and metal detection. As an indispensable piece of production equipment, the machine is widely applied for solid preparation production in the pharmaceutical industry. It is also widely used in such industries as chemical industry, food, etc.
Principle
The machine is composed of chassis, lifting system, vibrating system, sieving system and speed control system. When it works, turn on the power supply to adjust the rotation speed. The tablet sieving cylinder will rotate. The tablets will enter the machine from the equipment in the previous procedure. After tablet sieving, the tablets will flow to the hopper through the discharge outlet.
Feature
1. Long tablet dust removing path, automatic tablet face turning and grinding, and high tablet sieving efficiency
2. It adopts a quick installed connection structure, making it more convenient to disassemble, install and clean the machine.
3. It adopts modular design and the outlet height is easy to adjust. The feeding inlet and discharge outlet can be subject to 360° adjustment.
4. The production speed adopts stepless adjustment. With stable production efficiency, it is suitable for batch production of tablets of different diameters.
5. The tablet sieving plate is dismountable. Without any dead corner for cleaning, it meets GMP requirements.
Technical parameter
Model | JF200C |
Production capacity (pcs/h) | 1000000(φ4) |
Power (W) | 150 |
Dedusting distance (m) | 6.2 |
Max. tablet diameter (mm) | φ25 |
Power supply | 220V∕110V 50Hz∕60Hz 1P |
Compressed air | 0.1m3/min―0.1Mpa |
Vacuum cleaning | 2.5 m3/min―0.1Mpa |
Overall dimension (mm) | 500*550*1350~1500 |
Weight (kg) | 70 |
