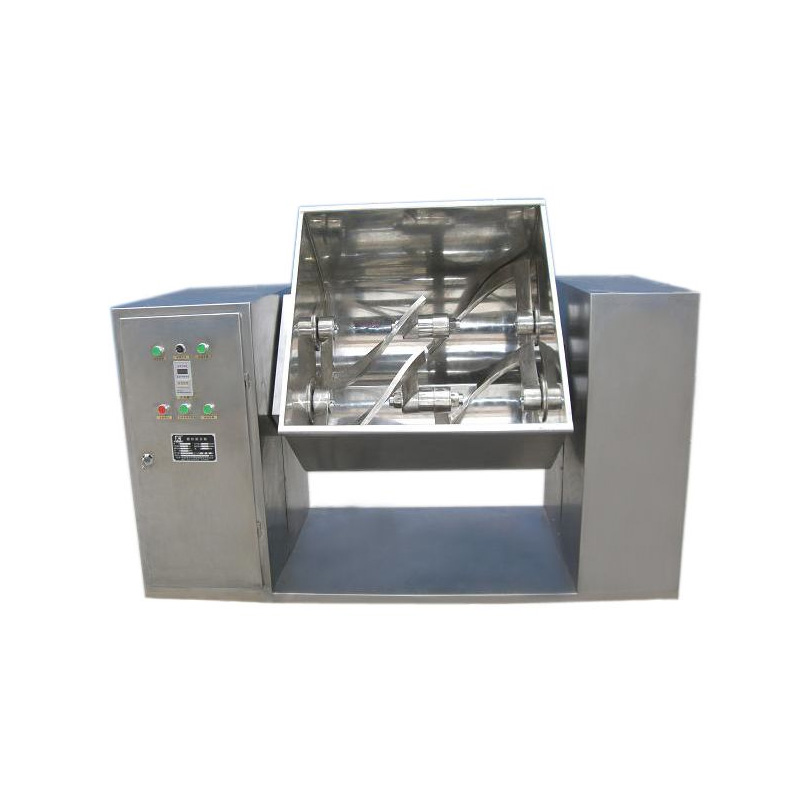

Sigma blade mixer

Horizontal sigma blade mixer is made of stainless steel and is suitable for homogeneous mixing of less sticky powder or paste in pharmacy, chemical and foodstuff industry.

Product Details

Applications:

Horizontal sigma blade mixer is made of stainless steel and is suitable for homogeneous mixing of less sticky powder or paste in pharmacy, chemical and foodstuff industry.

Structural Features:

1. Reliable driving, safe in dust protection, the machine is fitted with two sets of reducers for stirring and the benefit of safety and dust protection.

2. W-type stainless steel mixing bowl and main-sub-stirring blades offer excellent anti-corrosive properly to assure quality and cleanness of the mixing material. Stirrer blades are detachable type which allows thoroughly washing of the bowl during change of mixing material.

3. Mixer is actuated electromagnetically and is easily controlled by a button switch. The rotation of stirrer blade and tilting if bowl are both inner locked to assure safety in operation.

Main technical data

Model	WSH-150	WSH -200	WSH -300	WSH -400	WSH -500	WSH -600
Blade form	S Paddle	S Paddle	S Paddle	S Paddle	S Paddle	S Paddle
Working volume	90	140	180	250	300	380
Speed of stirrer (rpm)	24	24	24	24	24	24
Flip angle	＜105⁰	＜105⁰	＜105⁰	＜105⁰	＜105⁰	＜105⁰
Stirred motor (kw)	3	4	5.5	7.5	7.5	11
Tilting motor (kw)	0.75	0.75	1.1	1.5	1.5	2.2
Overall dimension (mm)	1685×600 ×1000	1850×600 ×1000	2160×700 ×1250	2280×700 ×1250	2450×700 ×1250	2500×900 ×1350
Weight	750	800	950	1050	1250	1500
