Fitz Mill

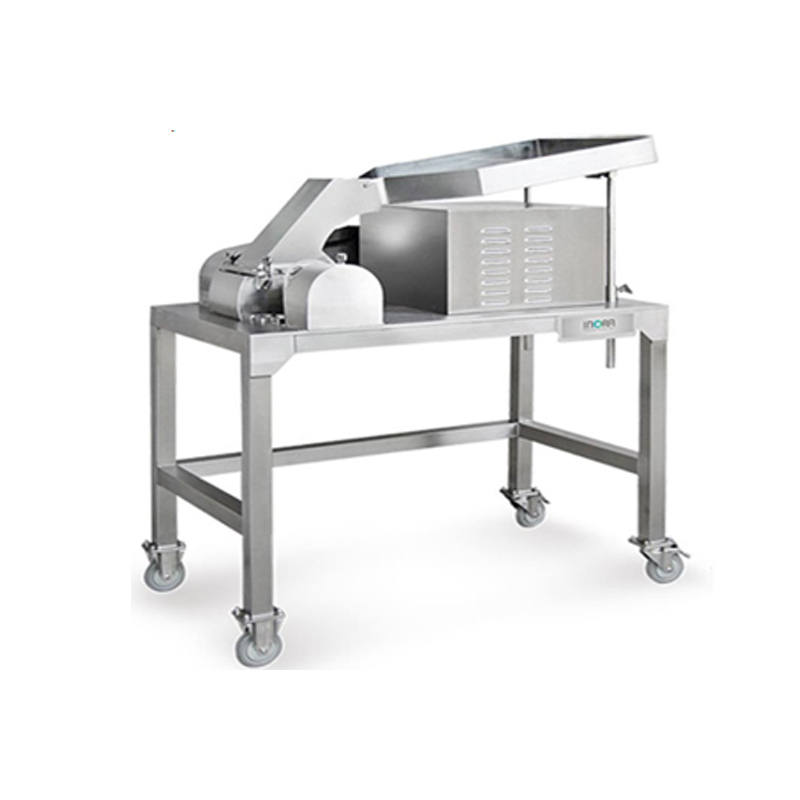

Fitz Mill
This fitz mill / comminuting mill is consisted of feed hopper, grinding chamber (blades, sieve, and liners), discharge port, frame, etc.
Product Details
Main applications
The FITZ mill / comminuting mill is designed by the principle of mixed powder jetting and is of wide use for many fields, such as pharmaceutical, foodstuff and chemical industries.
Features
The FITZ mill / comminuting mill has a simple structure and is easy to be installed, dismantled and cleaned. The machine has the features of stable running, easy moving, low noise, high grinding efficiency, and low consumption of power.
Working Principle

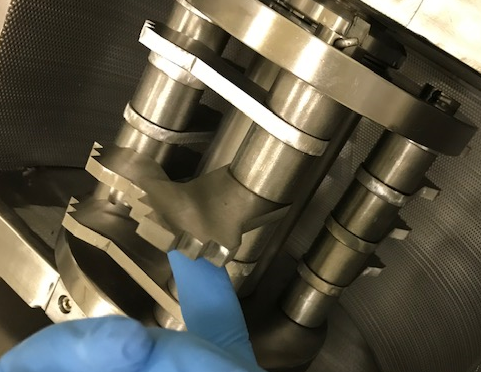

The fitz mill / comminuting mill is a high speed running machine. There are sharp tooth type knives on the pulverizing chamber cover shell, and the impacting knives on another side (see the picture below), the raw materials are crushed through impacting and shearing of impacting knives and tooth type knives. The different fineness of powder can be achieved by changing the different sieves or adjusting the speed. It is designed according to GMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc.
Hammer type (standard) Blade type
Technical parameters
Model | PFS~16 | PFS32 |
Production capacity (kg/h) | 50~300 | 100~500 |
Fineness of finished product (mesh) | 12~120 | 12~120 |
Adjustable speed (r/min) | 2900 | 2900 |
Motor Power (kw) | 5.5 | 11 |
Dimensions (mm) | 1100×860×1520 | 1280×950×1600 |
Weight (kg) | 450 | 800 |
