Oscillating granulator

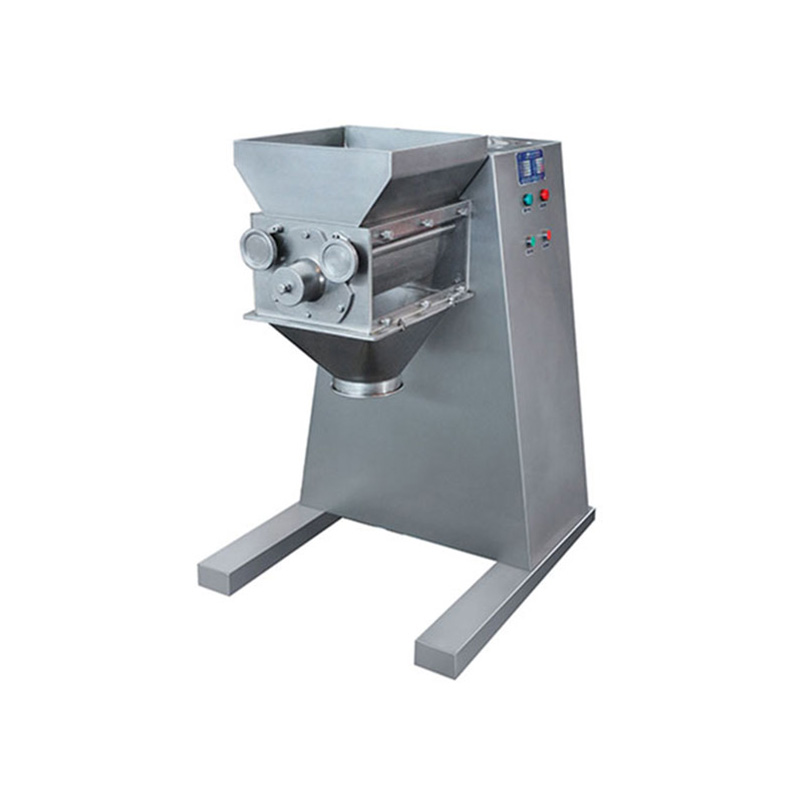

The oscillating granulator works under the action of clockwise and counter clockwise. Making use of the rolling motion of rotating barrel, wet powdery materials or dry agglomerate materials will be forced to pass through sieve, and then become granule.
Product Details
The oscillating granulator works under the action of clockwise and counter clockwise. Making use of the rolling motion of rotating barrel, wet powdery materials or dry agglomerate materials will be forced to pass through sieve, and then become granule.
Features
The rotating speed of the roller can be adjusted during operation.
The sieve can be removed and remounted easily, with adjustable tension, easy operation and low noise.
All parts are made of stainless steel, which meet the GMP standard.
The driving mechanism, lubrication system and mechanical components are enclosed in the machine body, ensuring long service life.
Main Technical Specification
Item | YK160A | |
Dia. of Rotor | 160mm | |
Effective Length of Rotor | 360mm | |
Rotor Speed | 65r/min | |
Production Capacity | Dry | 700kg |
Wet | 300kg | |
Hopper Size | 415*380mm | |
Motor | 2.2kw380V | |
Overall Size | 910*700*1200mm | |
Net Weight | 380kg |
Item | YK60 | YK90 |
Dia. of Rotor | 60 | 90mm |
Rotor Speed | 46 | 50rpm |
Production capacity | 25~35kg/h | 50~100kg/h |
Motor power | 370W | 550W |
Overall Size | 530×400×530mm | 750×460×840mm |
Net Weight | 70kg | 90kg |
