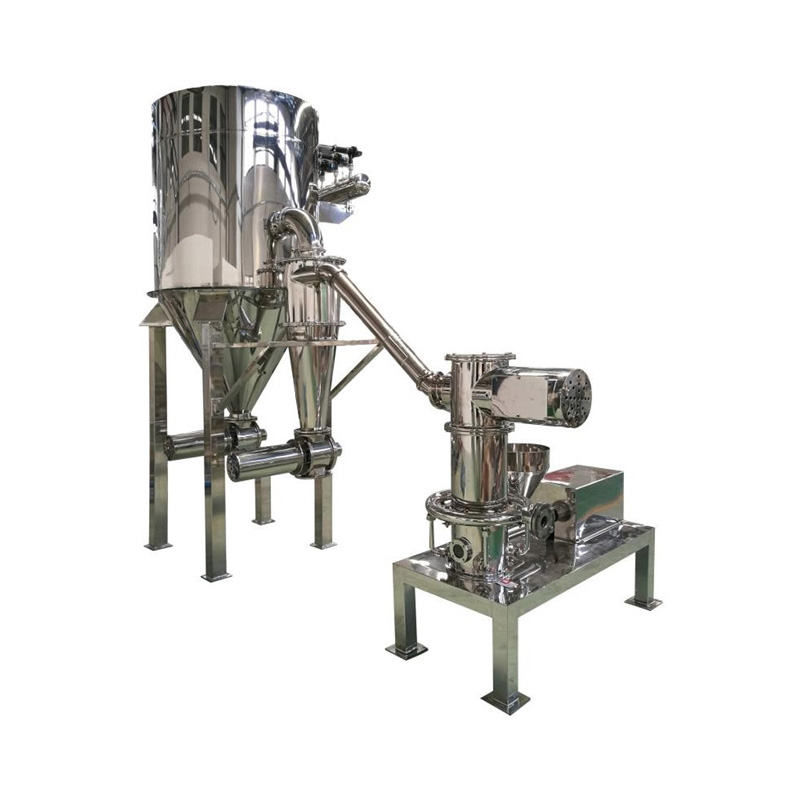

  Airflow mill

  The pulverization principle of the laboratory airflow mill is based on the principle of fluidized bed jet pulverization, which uses high-speed airflow to achieve ultra-fine pulverization of dry materials. It consists of crushing nozzle, classification rotor and so on. The material is accelerated in the high-speed airflow, and repeatedly impacts and collides at the intersection of the nozzles to achieve the crushing effect. The pulverized materials are classified by the classification wheel, and the materials that meet the requirements of fineness are separated by the classification wheel and collected by the cyclone separator and the dust collector





Working principle

The pulverization principle of the laboratory airflow mill is based on the principle of fluidized bed jet pulverization, which uses high-speed airflow to achieve ultra-fine pulverization of dry materials. It consists of crushing nozzle, classification rotor and so on. The material is accelerated in the high-speed airflow, and repeatedly impacts and collides at the intersection of the nozzles to achieve the crushing effect. The pulverized materials are classified by the classification wheel, and the materials that meet the requirements of fineness are separated by the classification wheel and collected by the cyclone separator and the dust collector

Feature

1. The energy consumption is very low.

2. Easy to clean, easy to disassemble, easy to install, there is no dead angle inside the equipment, and the samples will not be polluted by residues during use;

3. When the equipment is crushed, the noise is low, it will not heat up, it will not be mixed with impurities, and the loss is extremely low;

4. Small footprint, small volume, simple and beautiful appearance; good airtightness, no dust, and no unnecessary loss of samples;

5. For ordinary materials, it can be pulverized to about 1000 mesh in one pass.

Technical parameters
