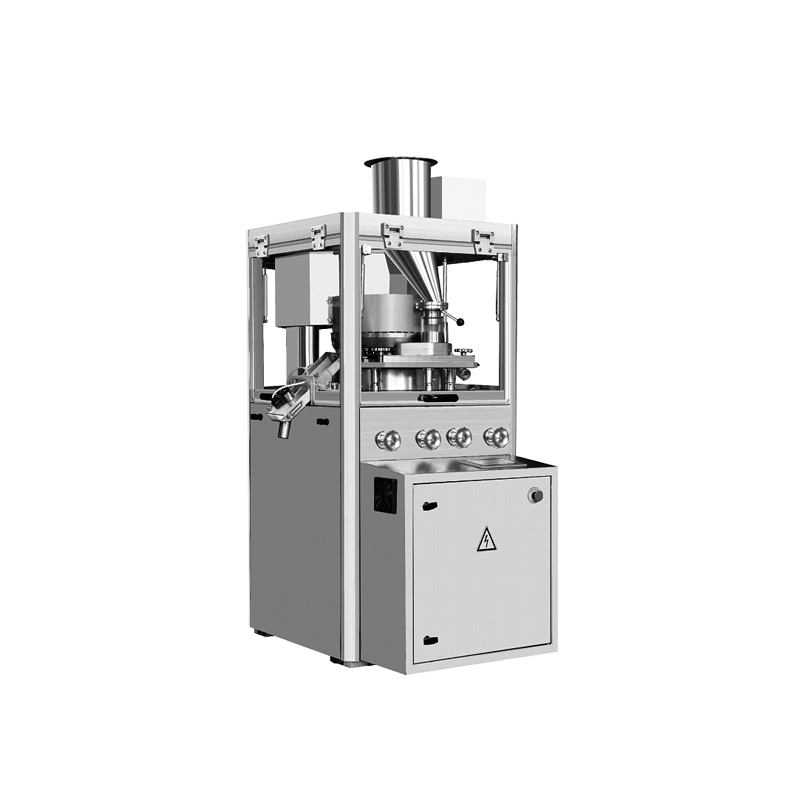

GZPK370 high speed tablet press
GZPK370 high speed rotary tablet press is a new single press high speed tablet press. It has the characteristics of large pressure, novel appearance, reasonable structure, convenient operation and easy maintenance. It meets GMP requirements.
Product Details
Adopts PLC control with auto protective function.
Touch screen operation. Operation menu is easy to understand
Force-feeding unit with a good applicability to powder;
Central auto lubrication system;
Main and pre-pressing, tablets formed twice.
Auto compensation of powder;
Monitoring pressure of each punches and displays the pressure on the touch screen.
There are two chutes for qualified tablets and defective tablets. Defective tablets can be rejected from one chute.
Main Technical Data
Model | GZPK370-26 | GZPK370-32 | GZPK370-40 |
Quantity of Punch & Die (set) | 26 | 32 | 40 |
Tooling Type | D | b | bb |
Max. Pre-pressure (kn) | 16 | 16 | 16 |
Max. Pressure (kn) | 100 | 100 | 100 |
Max. Dia. of Tablet (mm) | 25 | 16 | 13 |
Max. Thickness of Tablet (mm) | 8 | 8 | 8 |
Max. Depth of Filling (mm) | 20 | 16 | 16 |
Middle Die Diameter (mm) | 38.1 | 30.16 | 24 |
Punch diameter (mm) | 25.35 | 19 | 19 |
Rotation Speed (r/min) | 13-110 | ||
Production Capacity (pcs/h) | 20000-171600 | 25000-211200 | 31000-264000 |
Motor Power (kw) | 7.5 | ||
Outside Size (mm) | 820×1100×1750 | ||
Weight (kg) | 1600 |
