  Blister packaging machine




  Automatic Alu-PVC / Alu-Alu blister packaging machine can form plastic or aluminum blisters, fill products, seal blisters to aluminum foil or dialyzing like tyvek paper. Blister packages are the ideal form of packaging for capsule, tablet, honey pill, candy, liquid, paste, injector as well as irregular shape Alu-plastic, paper-plastic composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

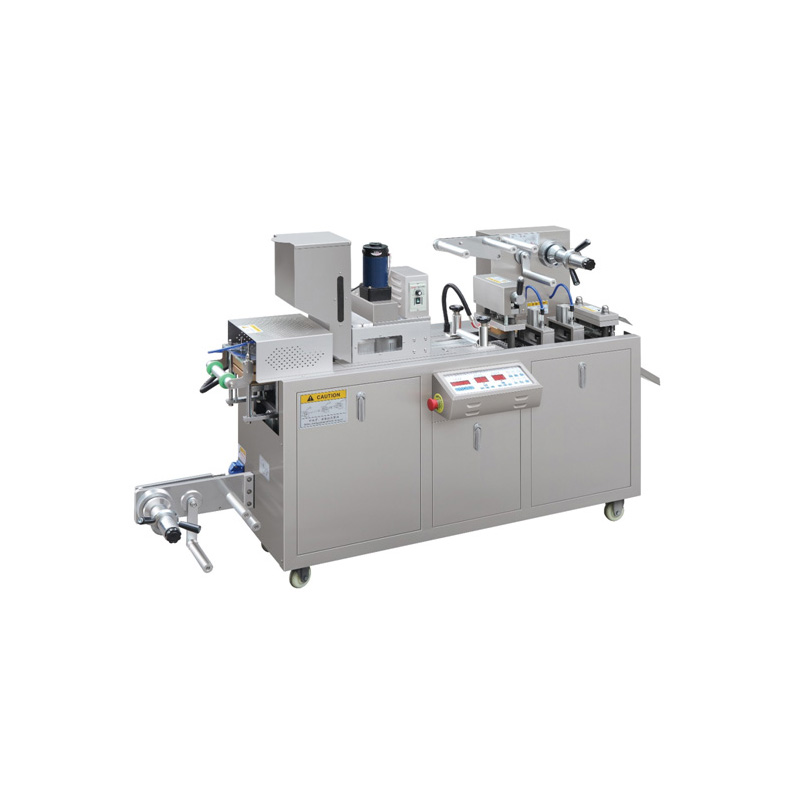

DPB80 / DPB150 BLISTER PACKAGING MACHINE (AL/PVC, AL/AL)

Features:

1.      It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

2.      Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

3.      It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

4.      It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

5.      The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

Work process

(1)  PVC roll material

(2)  Blister forming station

(3)  Feeding station

(4)  AL roll material

(5)  Heat seal station

(6)  Steel seal production batch number

(7)  Cutting station

(8)  Waste receiving device

(9)  Traction station

Technical Specification

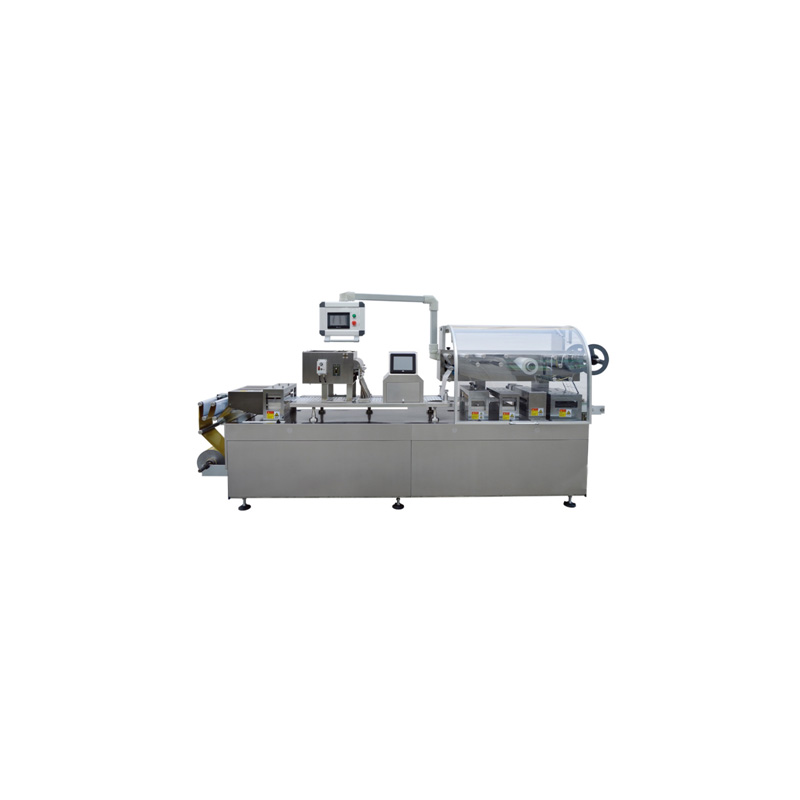

DPP-260 BLISTER PACKAGING MACHINE (AL/PVC, AL/AL

Technical Specification
