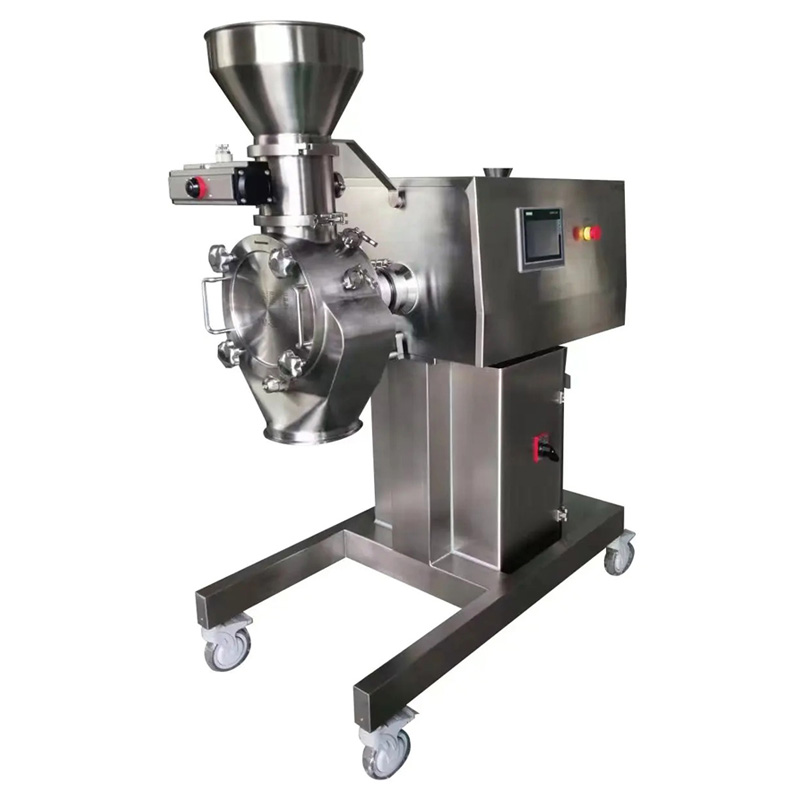

  Hammer mill

  Hammer mill has introduced foreign advanced technology, and has been widely used in pharmaceutical, food and chemical industry due to its unique and advanced design and manufacture. It’s simple and modular design, good crushing effect and discharge rate make it more suitable for pharmaceutical, food and chemical fields.


Hammer mill has introduced foreign advanced technology, and has been widely used in pharmaceutical, food and chemical industry due to its unique and advanced design and manufacture. It’s simple and modular design, good crushing effect and discharge rate make it more suitable for pharmaceutical, food and chemical fields.

Outstanding performance in mass production and laboratory applications

l  The practical clamp connection design enables the equipment cavity to be easily disassembled and separated, making it easier to clean and sterilize;

l  The effective area of the screen is larger, which is more than 30% higher than that of the traditional screen;

l  Especially suitable for the crushing of hard, crystalline and fibrous materials;

l  Suitable for aseptic production and dust-free production

l  All kinds of dry, wet and heat-sensitive materials can be applied.

Working principle

The crushed material is thrown radially under the centrifugal force of the high-speed rotating blade, and the particles are hammered, sheared and collided at high speed between the particles, the inner wall of the crushing cavity, and the knives. The particles that meet the requirements enter the receiving device through the mesh screen, to complete the crushing.

Feature

l  Modular design makes disassembly and assembly easier and more convenient;

l  The rotor and screen can be replaced quickly and easily;

l  Support blade, hammer face and blade face to be turned over to ensure the crushing effect of materials;

l  The cavity is polished and polished to ensure that the material is not deposited, and the cleaning is very convenient;

l  The material in contact with the material is made of 316L stainless steel, which fully conforms to the GMP standard.

l  Support online cleaning and sterilization, and the handpiece can withstand 2.2bar steam sterilization.

l  The design of the stirring valve plate ensures continuous and quantitative feeding;

l  Uniform feeding is ensured by performing the control of the cylinder;

l  The control of the whole machine is centrally displayed on the LCD screen, which can intuitively observe and control the operating conditions of the equipment.

Design and manufacture in accordance with GMP standards

Dust-free production

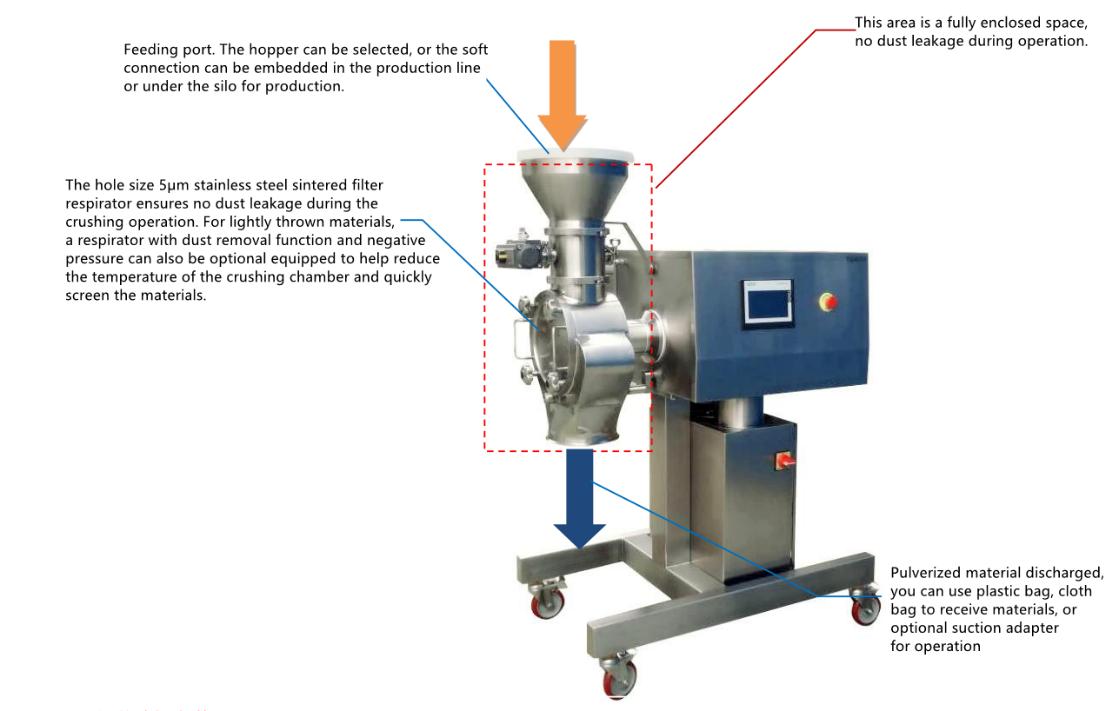

Dust-free pulverizing operation

1. The material is fed from the feeding port and fed uniformly through the feeding butterfly valve. The material in the cavity is pulverized by the high-speed hammering (shearing) of the rotor, and the material that reaches the particle size passes through the screen to the discharge port due to the action of gravity to discharge.

2. During the whole crushing operation, the upper feeding port and the lower feeding port can be made into a closed state (the cavity is exhausted through the breathing port), so as to achieve no dust generation during the crushing operation.

Production capacity:
