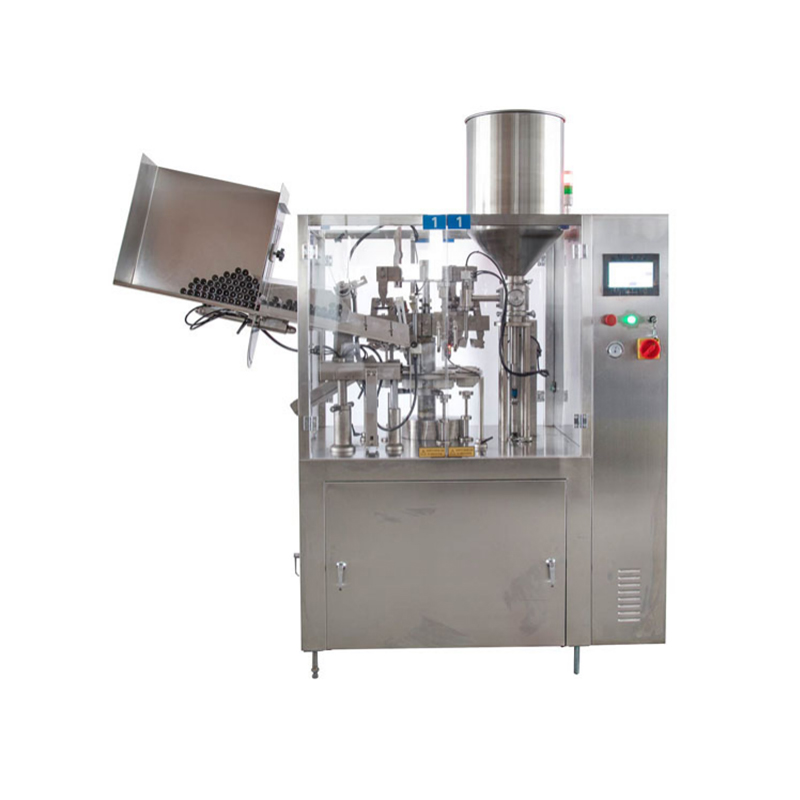

  Tube Filling And Sealing Machine

  Tube Filling And Sealing Machine

  The control parts of the machine are composed of intelligent man-computer interface, large touch screen display/operation control panel, including temperature setting, motor speed, filling speed, direct screen display and screen control. The components of the machine which touches the filling material are made of stainless steel SUS304 or SUS316L. Transparent cover, feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, auto-stop, soft tube positioning, photoelectric sealing control etc. During the process, hose-feeding and setting, filling and sealing, ejecting are all automatically controlled. Digital count device is installed at the low front part of the machine. During filling process the filling head is put inside the material pot to avoid air-entrance. For high viscosity filling material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are available to meet different need of clients.








Product Features

Colorful touch screen is convenient to control and the operation condition is clear at a glance.

Tilted feeding box provides a convenient facility for tube filling. A pinching board is installed beneath the feeding box to prevent the tube from blocking.

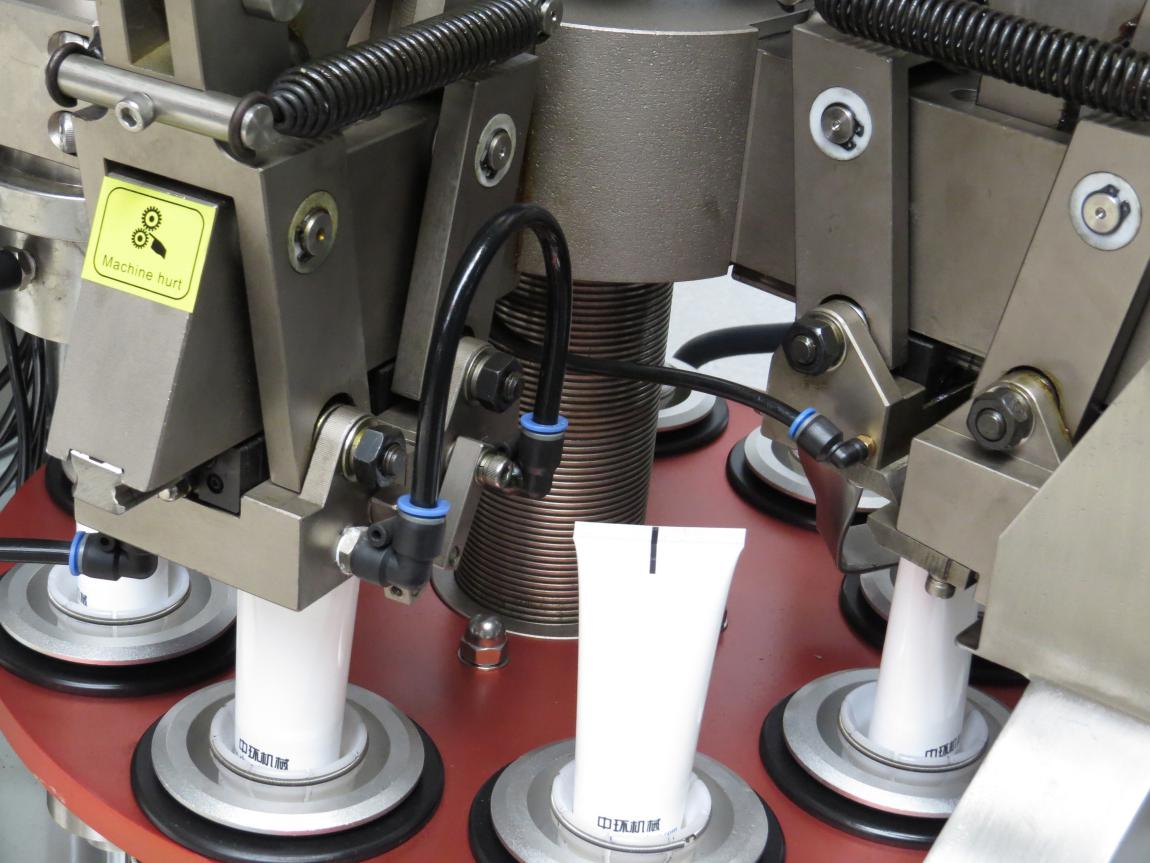

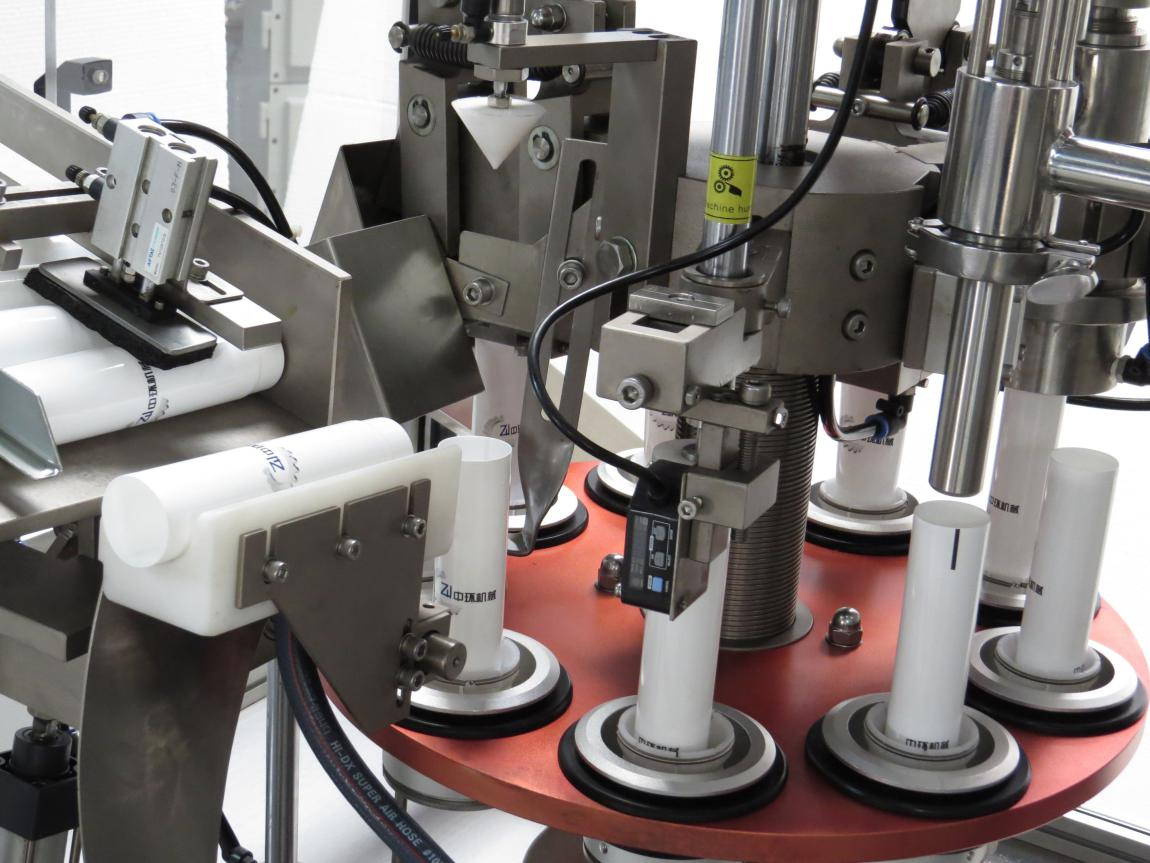

During the mechanical tube feeding, the tube is pressed into the holes of working dishes which are stable and reliable. You only need to adjust the accessory when the product is changed for another size.

Simultaneous positive pressure and negative pressure dust absorption system with longer cleaning time ensures a thorough cleaning result.

The precision of mechanical link system is within 0.2mm.

With unique service control, the filling can be adjusted freely by the touch screen.

Plug-in type trailing feeding starts from the bottom of the tube to prevent air from mixing with cream and reduce the possibility of product oxidation. Thus the quality of product can be ensured.

The machine can be rapidly heated.

Quick-replace type multi-function nip may perform vertical, circular and abnormal end sealing. The number of batch can be printed on both single and double sides and is convenient to change.

The smooth surface of machine has no dead angle and is easy to clean. The materials completely contact with the stainless steel and comply with GMP standard.

Technical parameters

Optional:

Water Chiller

Jacketed barrel insulation device

Barrel internal mixing device

Finished tube conveyor
