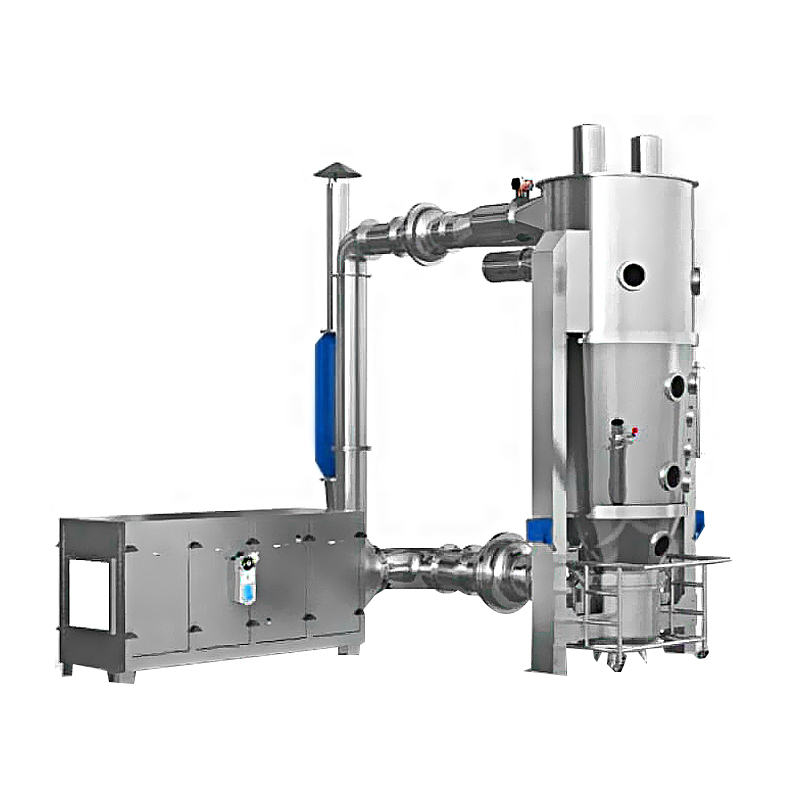

Fluidized Bed Granulator

Fluidized Bed Granulator

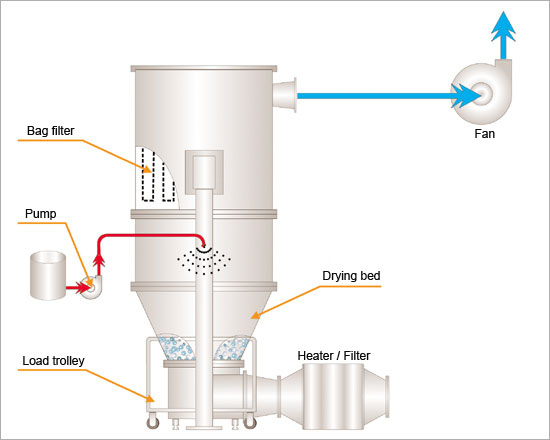

Fluidized bed granulator is one of the co mmonly used processing equipment in the pharmaceutical industries. It is a multi-purpose equipment in that mixing, granulation and drying are all carried out in the same equipment. The equipment operates in a bubbling bed regime.

Product Details

Advantages of Fluidized-Bed Granulator

1. Fluidized bed granulator is a one-unit system and thus saves labor cost, transfer loss, and time.

2. Heat transfer in fluidized bed granulator is 2 – 6 times greater than that generated by tray dryer.

3. The process can be automated once parameters are optimized.

4. Drying occurs uniformly and the process prevents mottling.

Scope of Application

Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine

Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.

Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.

Model	FL-5	FL-15	FL-30	FL-60	FL-120	FL-F200	FL-300	FL-500
Capacity (Kg/batch)	5	15	30	60	120	200	300	500
Scope of application for liquid (g/cm3)	<1.3
Material yield rate (%)	≥99
Qualified rate of finished products (%)	≥85
Container volume (L)	22	45	100	220	420	670	1000	1500
Diameter (mm)	500	550	700	1000	1200	1400	1600	1800
Power of fan (Kw)	3	5.5	7.5	11	18.5	22	30	45
Motor power of liquid supply (Kw)	0.37
Pressure of steam (Mpa)	0.4-0.6
Consumption of steam (Kg/h)	18	35	60	120	140	180	310	400
Pressure of compressed air (Mpa)	0.4-0.6
Consumption of compressed air (m3/min)	0.3	0.6	0.9	0.9	0.9	1.1	1.1	1.5
Working temperature (℃)	Ambient temperature to 120℃ (adjustable)
Noise (DB)	Installed separated with fan ≤75
