Ultra fine grinder
The ultra fine grinder is consisted of main motor, auxiliary motor, and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc. it meets the international advance level and is suitable for the material grinding by the trade of pharmaceutical, chemical, and foodstuff etc.
Product Details

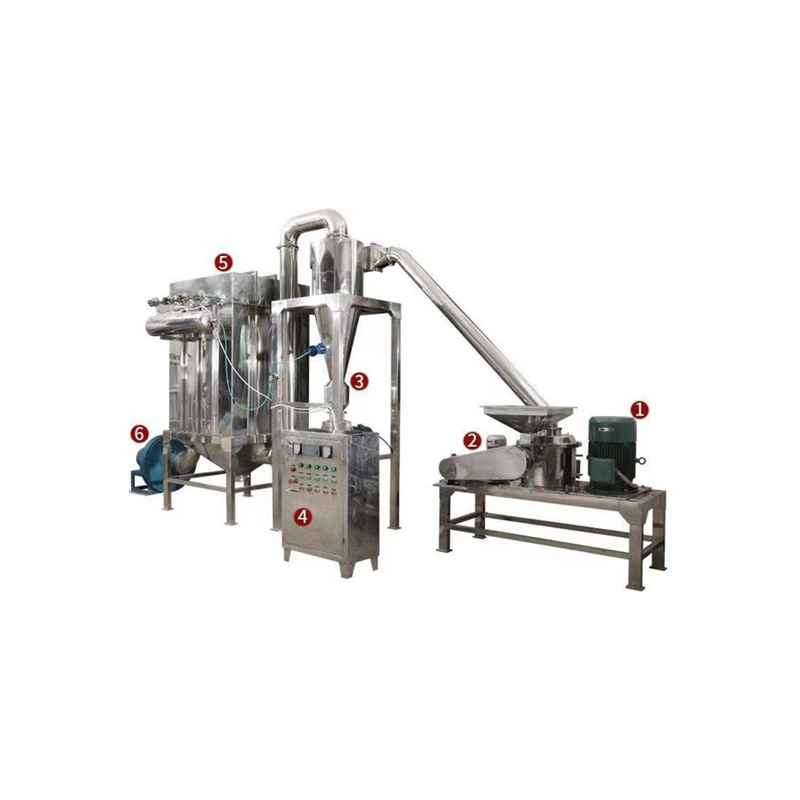

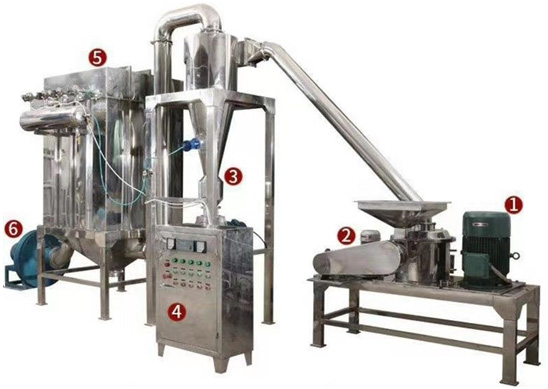

1.motor 2. pulverizing machine 3. cyclone collector 4. electric cabinet 5. dust collector 6. induced draft fan
Main Usage:
The ultra fine grinder is consisted of main motor, auxiliary motor, and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc. it meets the international advance level and is suitable for the material grinding by the trade of pharmaceutical, chemical, and foodstuff etc.
Working Principle
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high seed cutters, then the material is moved into the whirlwind separator and the bag dust collector or pulse dust collector by the negative pressure sucking method. The ejection material meets the product requirement.
Technical data
Model | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 |
Production capacity | 10~200kg/h | 30~250kg/h | 50~800kg/h | 80~1000kg/h |
Feeding size | <10mm | |||
Fineness | 80~320 mesh | 80~320 mesh | 80~320 mesh | 80~300 mesh |
Speed of main shaft | 5800rmp | 4200rpm | 3800rpm | 3200rpm |
Total power | 13.75KW | 22.15KW | 46KW | 84.15KW |
Weight | 850kg | 850kg | 960kg | 3200kg |
Overall dimension | 4200*1250*2700mm | 4700*1250*2900mm | 6640*1300*2960mm | 7500*2300*4530mm |
