  Capsule Polisher

  capsule polisher

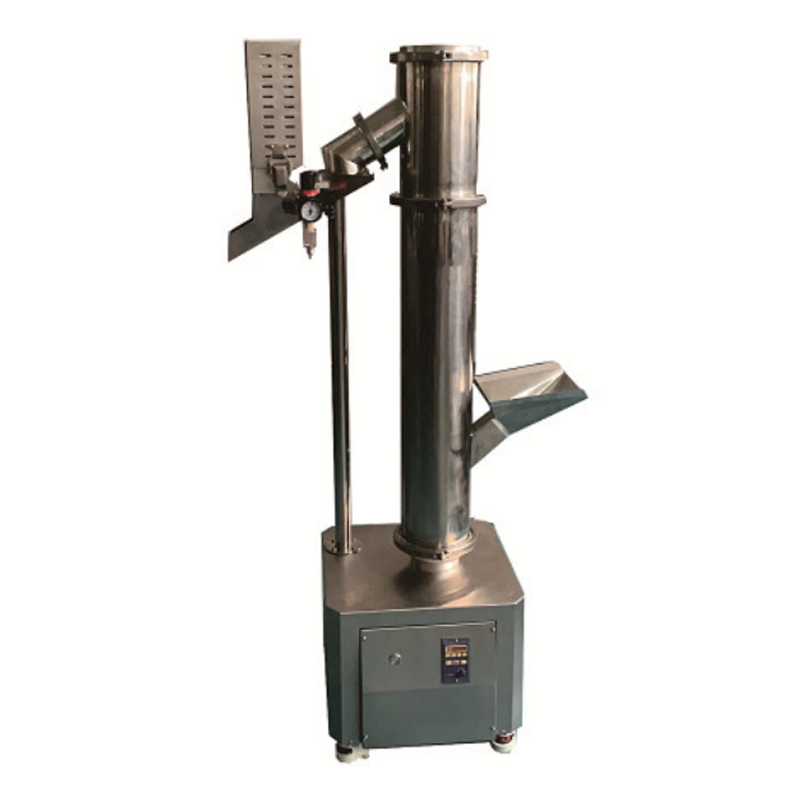

  Vertical capsule polisher with high working capacity and good polishing effect, completely made of 304 stainless steel, installed with frequency converter control. It runs stably. It is not only suitable for polishing capsules and eliminating static electricity, but also can automatically sort empty capsules, lightly loaded capsules, separated capsules and fragments. The machine is suitable for all sizes of capsules without replacement parts.








Vertical capsule polisher with high working capacity and good polishing effect, completely made of 304 stainless steel, installed with frequency converter control. It runs stably. It is not only suitable for polishing capsules and eliminating static electricity, but also can automatically sort empty capsules, lightly loaded capsules, separated capsules and fragments. The machine is suitable for all sizes of capsules without replacement parts.

Feature

l Design: open, modular, inlet and outlet and brush on the spindle are removable, easy to replace and repair, no sanitary dead-end design, nylon rotating brush. Good polishing effect, high production efficiency, dust and mechanical separation.

l Height: free to determine, to meet the needs of use.

l Appearance: made of full mirror 304 stainless steel, contact part is made of stainless steel 304 (Option: SS316).

l Cleaning: combined module, tool-free disassembly, easy to clean, safe and standardized.

l Control: frequency conversion technology, can be arbitrarily adjusted fast, slow and pause function, experience friendly.

l Level of protection: IP54

Basic information

l Quality: Spiral technology, stable, continuous pushing of capsules upwards, soft working brush, no breakage of capsules.

l Application: Capsule polisher for fast capsule transport upwards, for lifting height, removing dust and improving surface

l surface finish. At the same time, it can automatically sort out empty, broken, less powdered capsules and capsules with separated body and cap.

l Site: Can be used with any type of capsule filling machine and metal detecting machine, or alone.

Technical parameter

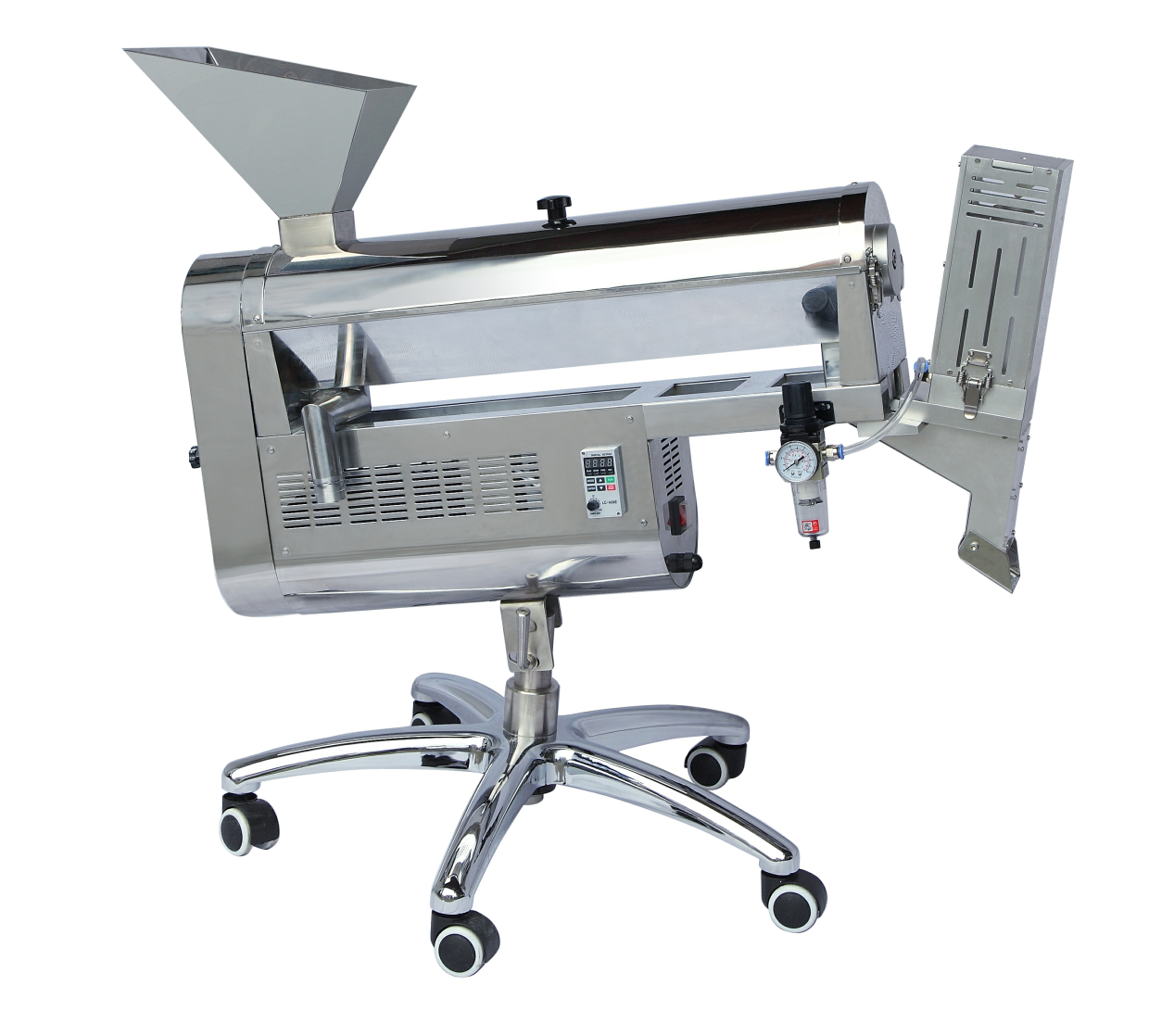

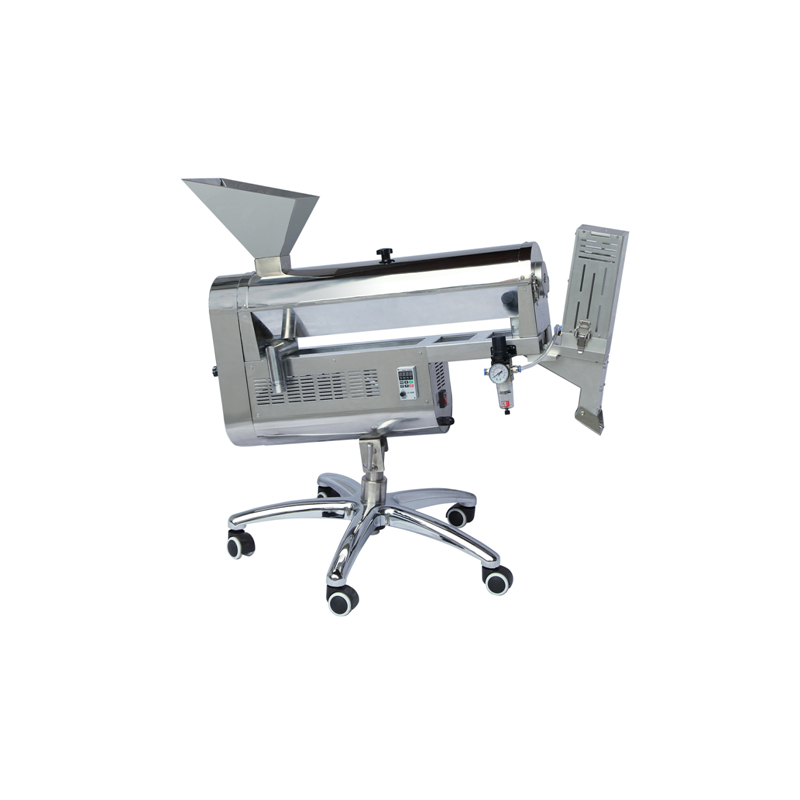

JPT-I CAPSULE SORTING POLISHER

The capsule polisher is a kind of capsule polisher with function of sorter as well. It plays the function of not only the polishing for capsule and tablet but eliminating static electricity. It can also automatically reject low weight capsule; loose piece and fragments of capsules. It is suitable for all sizes of capsules without the need to change parts.

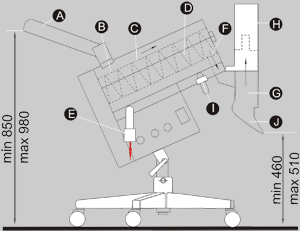

1. From the capsule filling machine the filled capsules are fed into A .

2. The turning brush brings capsules from B to C the cylinder.

3. Within the net cylinder brush D polishes and deducts the capsules. The loose piece and fragments are retrieved by vacuum sucker E .

4. The brush conveys the capsules to the outlet of cylinder F .

5. In the sorter segment G clean compressed air collects low weight capsule; loose piece and fragments of capsules to H the collector.

6. The pressure of the compressed air is shown on the filter decompressed valve meter I ,which can be adjusted at different requirement.

7. the qualified capsules are ejected from outlet J

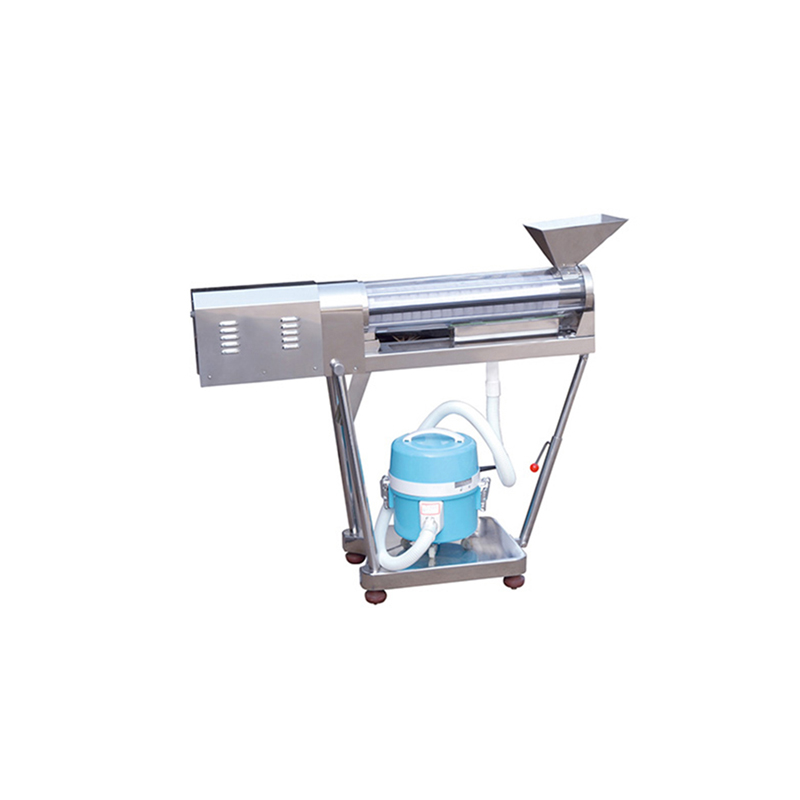

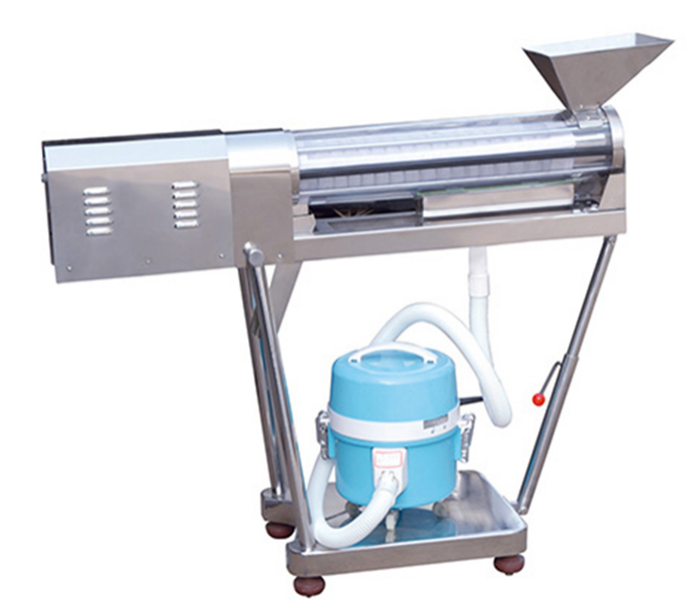

CYJ150 CAPSULE POLISHER

This machine is a novel special equipment for pharmacy. Under the drive of stepless regular motor, it can polish and clean the dust attached to the capsule and tablet to improve the surface of medicine polishing. It is suitable for various capsules and tablets to polish.

Main Technical Data
