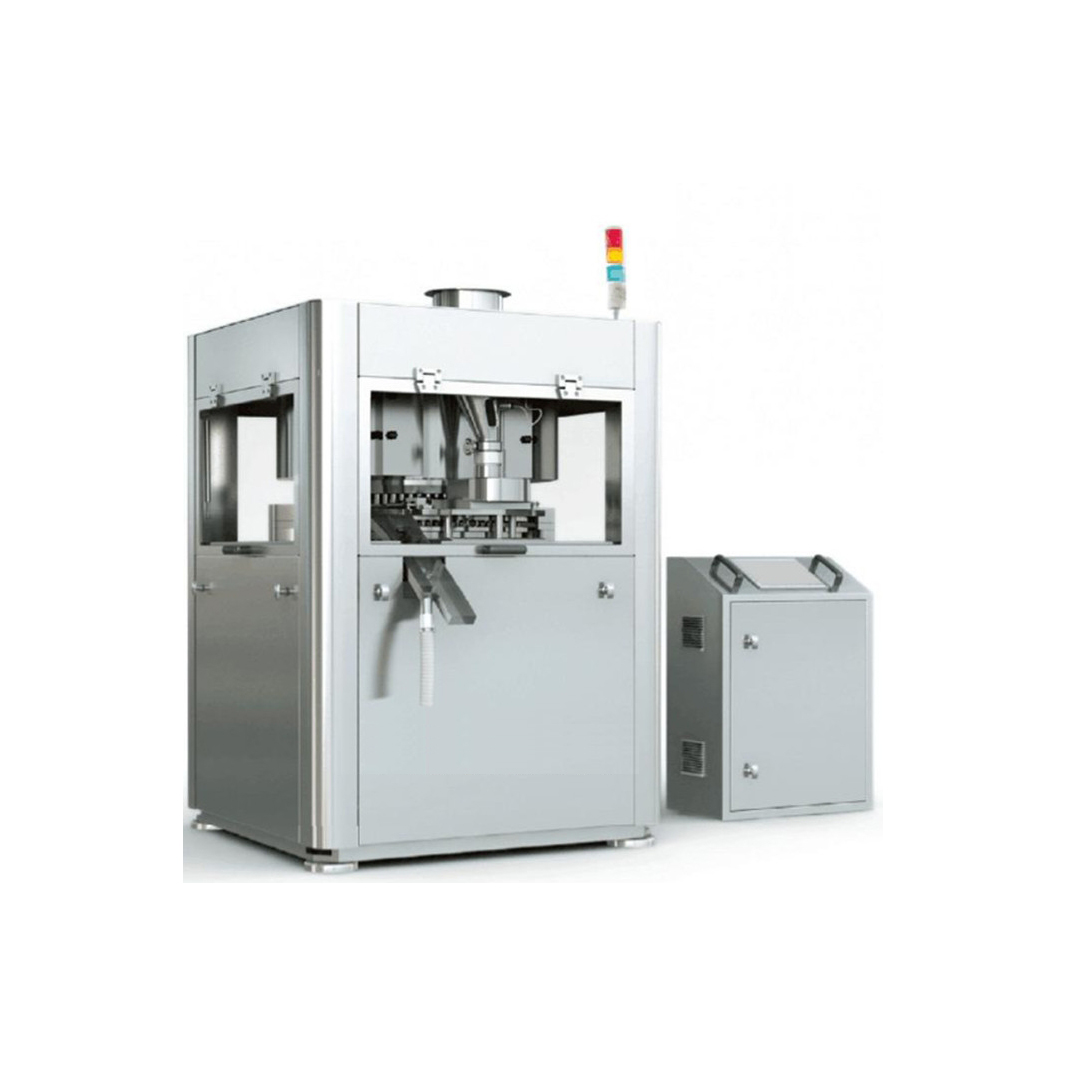

  GZPK720 high speed tablet press

  GZPK720 high speed tablet press can press two layers, annular, round, engraved and irregular tablets in pharmaceutical, food, and chemical industries.

GZPK720 high speed tablet press can press two layers, annular, round, engraved and irregular tablets in pharmaceutical, food, and chemical industries.

Feature

1. Double-sided discharge chutes, high productivity. No hand wheel with machine, automatic drive by synchronous motor, it can complete realize automatic production.

Separate control cabinet is used to operate machine, and the separated production area from operation area to ensure the safety for operator and sanitation for production. Adopts encoder to count, measure and display control is accurate.

2. Main pressure system, pre-pressure system, filling system, feeding system adopts modular design with simple structure. These modular parts can be freely adjusted or removed. Non-interference between maintenance are easy. The main pressure and pre-pressure are the same structure which can be interchanged each other. Both main pressure and pre-pressure are all 100kn which make it easier for forming tablets.

3. Tri-wheeled double layer feeding system.

The upper impeller can increase powder flow and balance powder density.

The lower impellers are used for feeding and dosing to ensure the uniformity of feeding.

Use servo motor to adjust dosing cam track which an control filling depth to ensure accurate dosing.

4. Force-feeding device controls the flow of powder and ensures the accuracy of feeding. Feed is easy to be disassembled and platform is easy to be regulated. No dead area in press chamber and easy to be observed and cleaned.

Main Technical Data
